Piston Set by JE - 83mm +.50mm Oversize Bore - 8.5: 1 CR - Stock Stroke - 86.4MM - 1.8T 20V

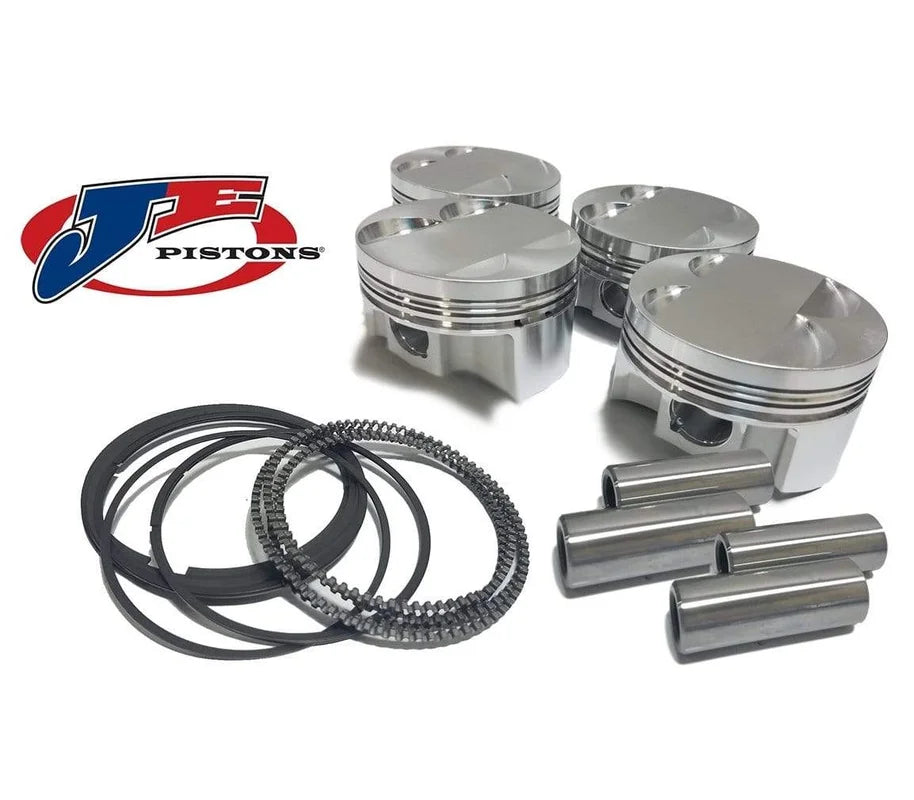

Description NOTE: Image shown not actual parts. JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports. Bore (in) 3.268 Bore (mm) 83. Top Compression Ring Thickness 0.0400 Second Compression Ring Thickness 0.0480 Oil Ring Thickness 0.111 Forging Type Round Volume (cc) -12.90 Series JE Pistons Piston Head Type Inv Dome/Dish Pin Diameter (IN) 0.787 Compression Height 1.286 Make AUDI / VOLKSWAGEN Wrist Pin Style – floating or press fit Floating Wall Type CHAMFERED.

Wall Thickness (IN) 0.180 Ringset Part Number JG1001-3268 Ring Brand ProSeal Ringset Included Yes Retainer Thickness 0.050 Retainer Lock Style Wire Lock Retainer Lock Part Number 787-050-MW Retainer Diameter (IN) 0.787 Replacement Single Piston 295744S Piston Pin Inside Diameter 0.427 Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED Piston Material 2618 Piston Pin Length (IN) 2.250 Piston Avg Wt 310 Pin Offset No Pin Brand JE Pistons Pin Part Number 787-2250-18-51C Pin Included Yes Pin Diameter (mm) 20.00 Oil Rail Support Included No Deck Clearance -0.005 Brand JE Pistons OE Part #’s.

06B-107-065-N / 06B107065 N / 06B 107 065 N / 06B107065N 06B-107-065-F / 06B107065 F / 06B 107 065 F / 06B107065F.
